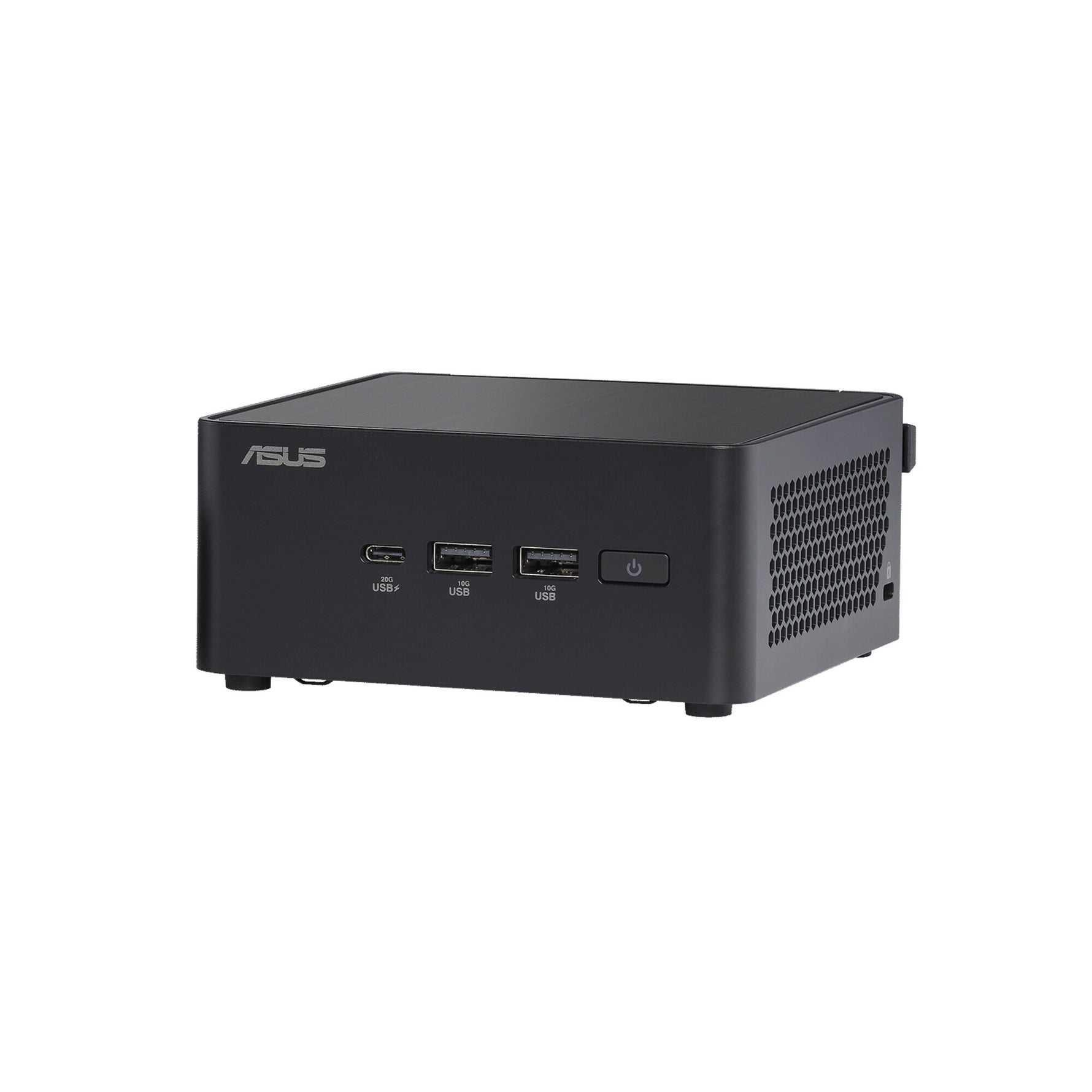

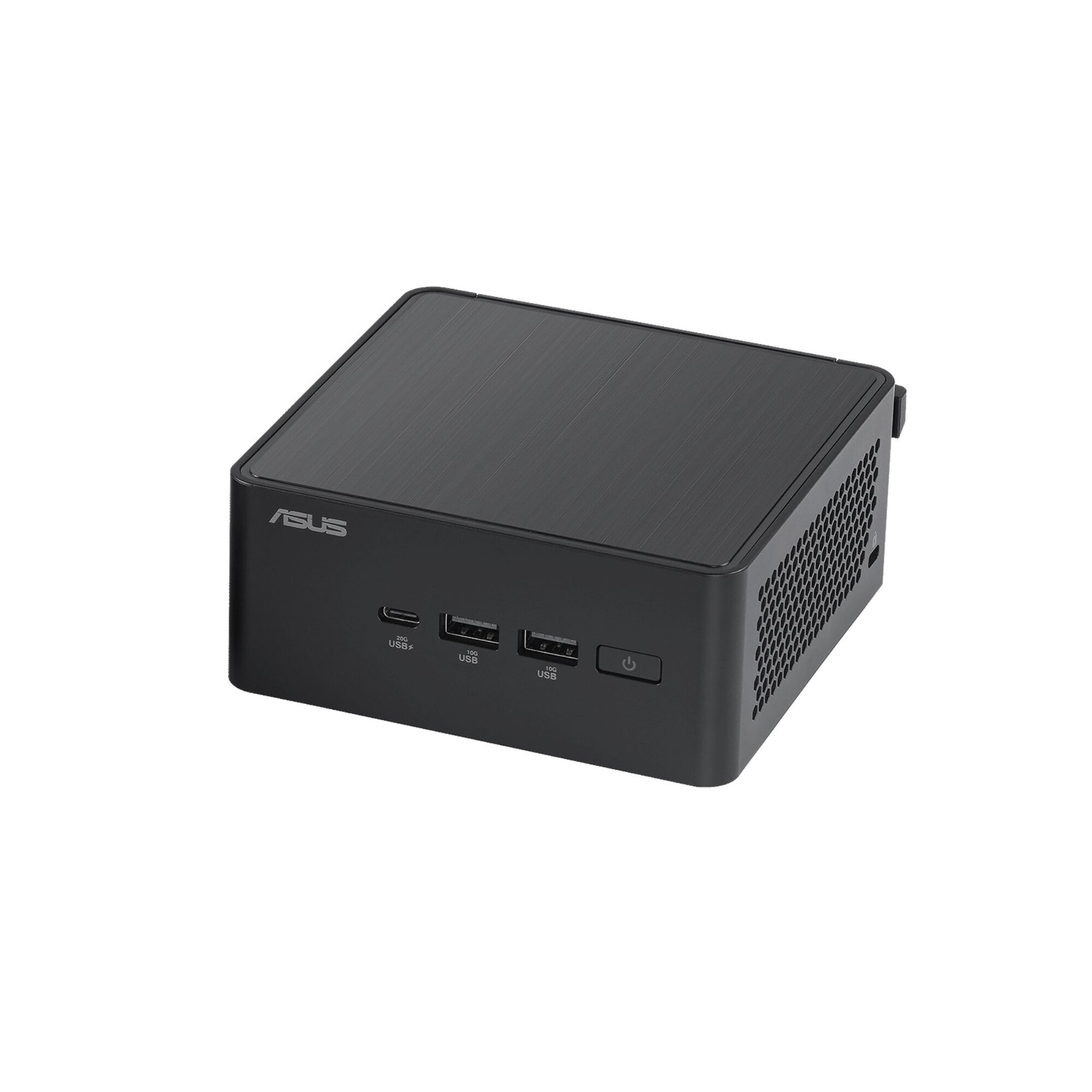

ASUS NUC 14 Pro RNUC14RVHU500002I UCFF Zwart 125H

• UCFF Zwart
• Type processor Intel 125H
• 2 SO-DIMM Maximum intern geheugen: 96 GB DDR5-SDRAM
• SSD 2.5,M.2
• Ingebouwde grafische adapter Intel Graphics
• Ethernet LAN Wifi

---

ASUS 90AR0072-M000P0 NUC 14 Pro (RNUC14RVHU500002I) UCFF, Mini PC barebone, DDR5, Wi-Fi 6E, 120 W

---

Compact Power, Intelligent Performance

Smaller, Faster, Better, AI Ready
The ASUS NUC brand represents a commitment to technological excellence, prioritizing innovative product design, to push the boundaries of performance and user experience.

Developed through a partnership between ASUS and Intel, the ASUS NUC product lines anchor on delivering uncompromised performance in the smallest form factors, backed by industry best quality and reliability, innovative modular designs, extended lifes pan options, smart cooling solutions, and advanced AI capabilities. The versatility of the products shines through an array of configurations catering to diverse user needs, from developers, to power users, to casual home use. Positioned as the preferred choice for a variety of business applications, vertical industries, and everyday users, the ASUS NUC combines exceptional performance with essential features, aiming to shape the next generation of PC experiences.

With a focus on supporting diverse businesses and enhancing PC applications, the ASUS NUC aspires to deliver on the brand promise of delivering the Next Unit of Compute (NUC) and make a lasting impact in the ever-evolving tech landscape.

Toolless Design
ASUS NUC 14 Pro offers toolless access to make it easy to open up the chassis to assess the M.2 PCIe SSD module for easy upgrades.

Certified Bluetooth
dongle-free experience
A certified Bluetooth dongle offers hassle-free operation, cost savings, and resolves ITDM issues. It eliminates concerns such as lost dongles, PC Bluetooth compatibility, and USB port limitations on NUC.

The dongle-free approach simplifies pairing, enhances audio quality, and improves control in video collaboration calls.

---

Processor
Type processor	Ja
Processorfabrikant	Intel
Processorfamilie	Intel Core Ultra 5
Processorgeneratie	Intel® Core™ Ultra (Series 1)
Processormodel	125H
Aantal processorkernen	14
Processor aantal threads	18
Prestatiekernen	4
Efficiënte kernen	8
Cores met laag energieverbruik	2
Maximale turbosnelheid van cores met laag energieverbruik	2,5 GHz
Prestatie-kernboostfrequentie	4,5 GHz
Efficiënte kernboostfrequentie	3,6 GHz
Processor cache	18 MB
Thermal Design Power (TDP)	28 W

Geheugen
Interne geheugen geïnstalleerd	Nee
Geheugen slots type	SO-DIMM
Aantal geheugenslots	2
Geheugen kanaal	Dubbelkanaals
Ondersteunde geheugen types	DDR5-SDRAM
Supported memory clock speeds	5600 MHz
Maximum intern geheugen	96 GB

Opslagmedia
Opslagdrives geïnstalleerd	Nee
Ondersteunde types opslag-drives	SSD
Opslagschijf afmetingen ondersteund	2.5,M.2
Opslag schijf-interface	PCI Express, SATA III
NVMe	Ja

Grafisch
Ingebouwde grafische adapter	Ja
Grafische adapter-familie	Intel
On-board graphics adapter model	Intel Graphics

Audio
Ingebouwde luidsprekers	Nee

Netwerk
Ethernet LAN	Ja
Wifi	Ja
Wifi-standaard	Wi-Fi 6E (802.11ax)
Wi-Fi-standaarden	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
WLAN-controller-model	Intel Wi-Fi 6E AX211
Bluetooth-versie	5.3
Bluetooth	Ja

Poorten & interfaces
Aantal USB 2.0-poorten	1
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A	3
Aantal USB4 Gen 2x2 poorten	1
Aantal HDMI-poorten	2
HDMI versie	2.1
Aantal Thunderbolt 4-poorten	2
Aantal Ethernet LAN (RJ-45)-poorten	1
Aansluiting voor netstroomadapter	Ja

Design
Type behuizing	UCFF
Kleur van het product	Zwart
Type koeling	Actief
Bevestigingsmogelijkheid voor kabelslot	Ja
Kabelslot sleuf type	Kensington
VESA-montage	Ja
Type product	Mini PC barebone

Prestatie
Aantal ondersteunde processoren	1

Algemeen
Productfamilie	NUC 14 Pro

Software
Ondersteunt Windows	Windows 11

Energie
Soort voeding	Externe AC-adapter
Netvoeding	120 W

Gewicht en omvang
Breedte	144 mm
Diepte	112 mm
Hoogte	41 mm
Gewicht	570 g

Inhoud van de verpakking
Inclusief netsnoer	Ja
Snelstartgids	Ja
